PBF流体模拟(WIP)

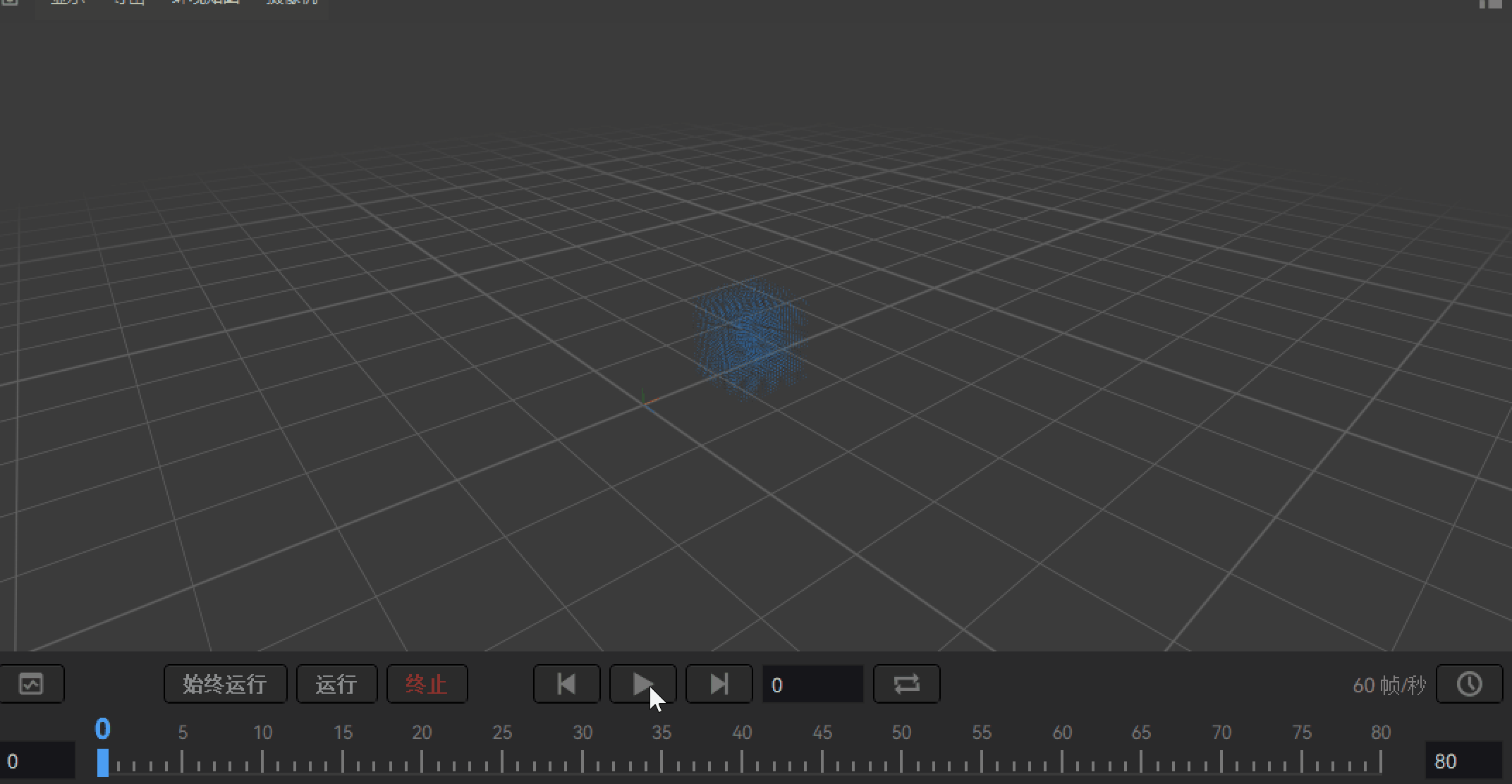

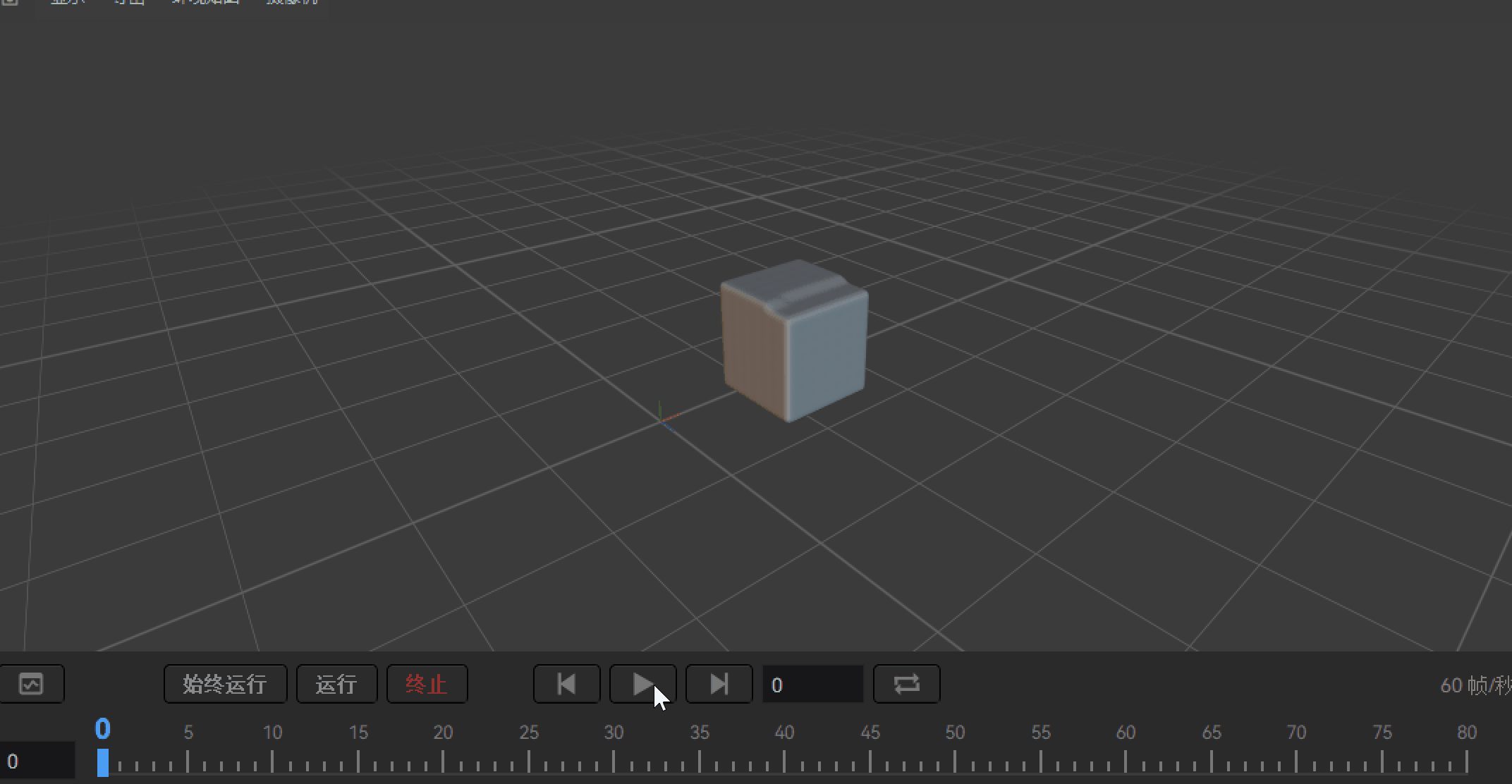

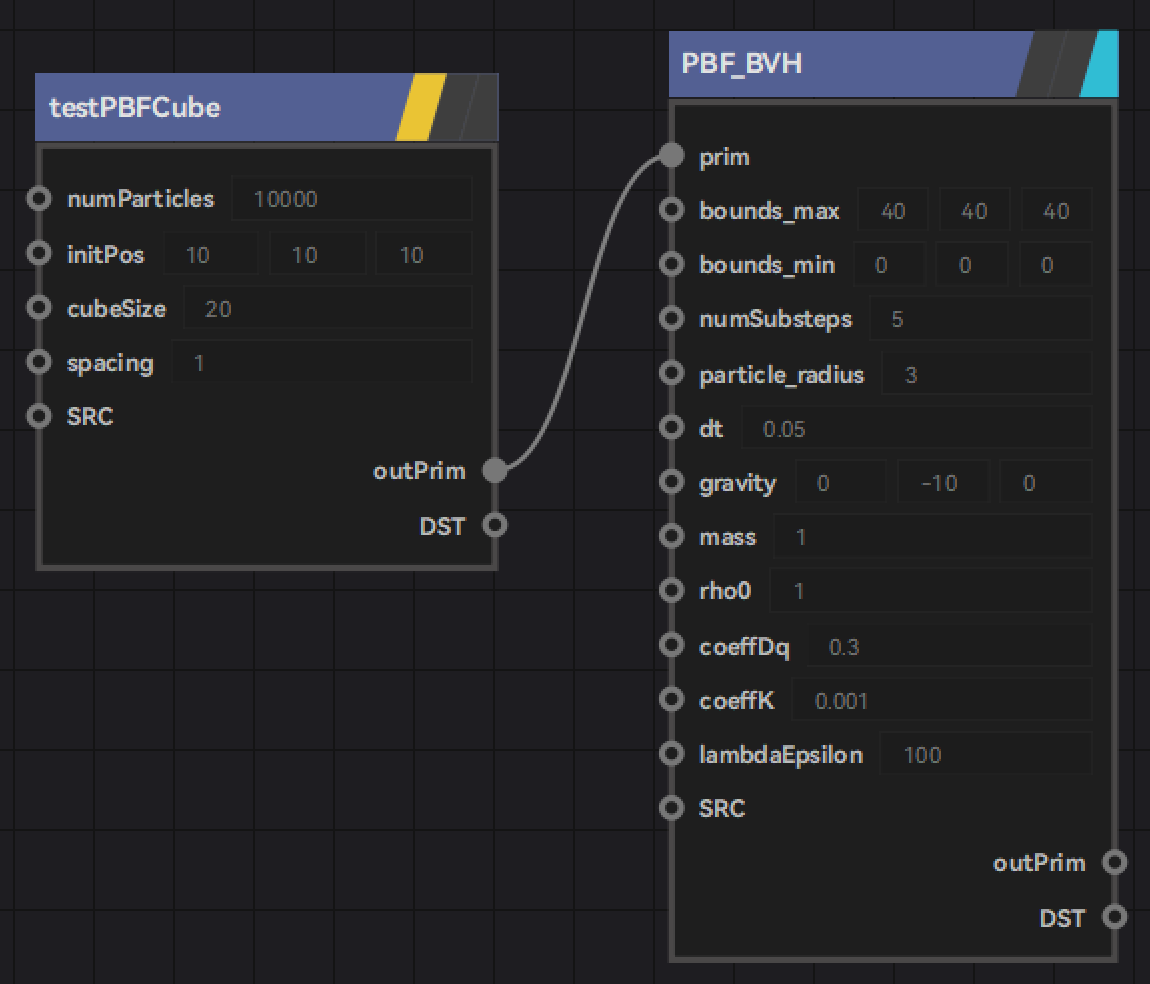

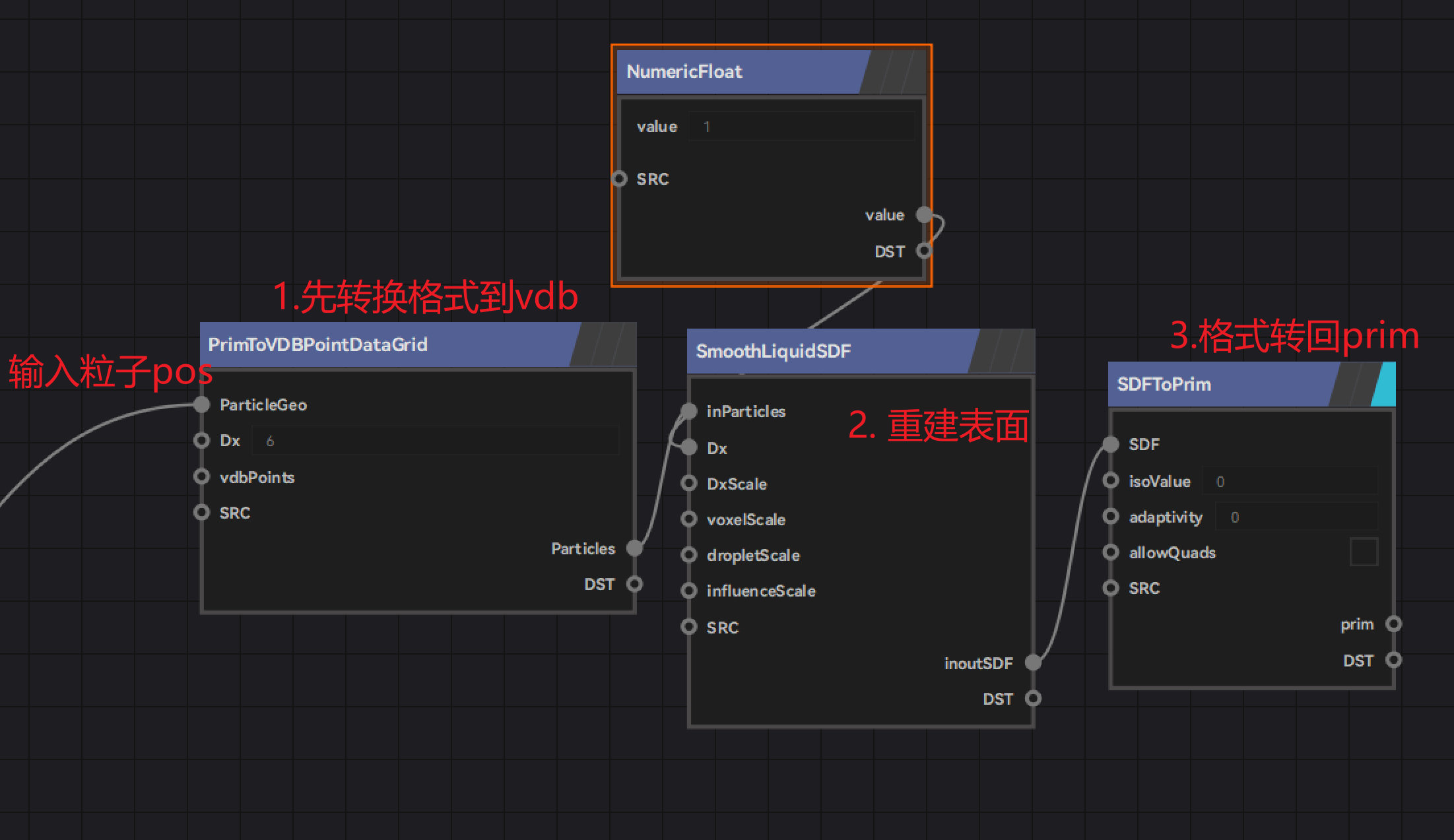

## 简介 > 注意:PBF目前仍然处于开发阶段,不能实用。本文档仅作为开发记录。文档将会动态更新。 PBD模块中的流体模拟目前默认称之为PBF_BVH PBF的意思是Position Based Fluid BVH的意思是我们目前采用BVH进行邻域搜索。 它是Miles Macklin 和Matthias Muller 2013年发表在TOG上的文章所公开的。具体请参考: 【论文】 https://mmacklin.com/pbf_sig_preprint.pdf 【Youtube展示效果视频】 https://www.youtube.com/watch?v=F5KuP6qEuew zeno默认的FLIP求解器相比,它最大的特点就是不需要建立网格。类似houdini中的vellum grain。因为是纯粒子法,所以**输入数据只是粒子位置pos,输出数据也只有粒子位置pos**。其他所有数据都只是辅助性的。 我们先简要介绍**用法**,然后介绍**原理**。 ## 用法 我们先要给出输入数据,也就是初始粒子的位置。然后连接PBF_BVH即可。 输入:prim中只需要pos。 输出:outPrim中只有pos。 参数:暂定,将会调整。 (pos数据结构用法与格式几乎与`std::vector<vec3f>`一致,并且两者可以隐式转换。) ![](/media/202210/2022-10-25_112842_306491.png) 运行效果: 由于目前参数为ad-hoc,所以场景设置有些大。需要在PBF_BVH上使用alt+F缩放到合适的大小。 ![](/media/202210/PBF_BVH_1666668855.gif) ### 表面重建 参考【zeno水打柠檬】示例 http://doc.zenustech.com/project-3/doc-191/ 我们为其进行表面重建。 核心节点为**SmoothLiquidSDF**。 对于从源码构建者,需要开启编译选项。 - ZENO_WITH_FastFLIP - ZENO_WITH_zenvdb - ZENO_WITH_ZenoFX 并且为了开启这些编译选项,请先安装openvdb。 由于SmoothLiquidSDF节点需要输入的数据格式为vdbPoint,所以我们先要把pos数据转换为vdbPoint格式。那么就先采用PrimToVDBPointDataGrid节点。该节点的Dx可以暂时给粒子直径,即6.0 然后连接SmoothLiquidSDF即可。由于该节点输出的是SDF,所以我们还需要转换回prim。也就是SDFToPrim节点。 对于SmoothLiquidSDF,还有一个必要输入数据为Dx。就是网格大小。这个值越小,重建出来的表面越细致。我们可以先给1.0 总结起来就是 ![](/media/202210/2022-10-25_115333_873025.png) 表面重建后的结果 ![](/media/202210/2022-10-25_115808_863409.gif) ## 原理 PBF的原理主要参考论文【Macklin2012】 https://mmacklin.com/pbf_sig_preprint.pdf 如同所有PBD方法一样,它也是分为三步 1. 外力求解(preSolve) 2. 约束求解(solveConstraint) 3. 更新速度(postSolve) 它所定义的约束是:密度约束。 如Macklin2012公式1所示 ![](/media/202210/2022-10-27_183119_690828.png) 其中的p就是各个粒子的位置。(1,2,...n实际上是一个邻域内的粒子,而非所有的粒子。) 即当前密度除以静息密度 - 1.0 实际上可以将其看成就是密度误差。 因此,PBF的核心就是保证**密度的恒定性**,密度的恒定性也就是不可压缩性。(从直观上讲,粒子既不过密也不过稀疏) 为了计算C,首先应计算密度rho_i。只需要借助SPH插值公式即可。W是核函数,充当的就是插值函数的角色。m是粒子质量,如无特别需要可以统一设定为一个标量。 ![](/media/202210/2022-10-27_183511_331824.png) 那么,我们还需要密度的梯度,从而在每次约束投影的时候,修正位置以保证密度的守恒性。 密度的梯度也借助SPH插值公式。SPH插值的特点是可以将物理量上的gradient转移到核函数W上。而核函数的梯度不过是个根据粒子距离计算的helper function罢了。Macklin2012中取W核函数为poly6,而gradW核函数为spikyGradient。 ![](/media/202210/2022-10-27_183749_372818.png) 这里的gradC是需要分类的。也就是k为i本身,和k为邻居j。这一点和SPH的pressure gradient force的计算方法是一致的,也是为了保证对称性。 有了C和gradC,我们就可以计算PBD框架中的拉格朗日乘数lambda了。 ![](/media/202210/2022-10-27_184238_564866.png) 其中epsilon是为了防止分母为0的很小的数字,可以取1e-6. 最后,仍然按照PBD框架模板,我们只要根据lambda和gradW修正位置p即可实现约束投影。 ![](/media/202210/2022-10-27_184453_702016.png) 上面的公式计算出了为了保证密度恒定性应该修正的粒子位置,也就是约束投影。其中sCorr是为了防止particle deficiency造成的lumping现象而增加的人工压力。如果不加,也可以模拟,但会造成artifacts。 这个人工压力参数由下面的公式计算 ![](/media/202210/2022-10-27_184629_696966.png) Macklin2012中推荐的参数组合为:n=4, delta_q=0.3h, k=0.1 还可以使用其他方法防止lumping,比如clamping密度到rho0以上。也就是不允许rho_i小于rho0,否则就强行设置为rho0.
